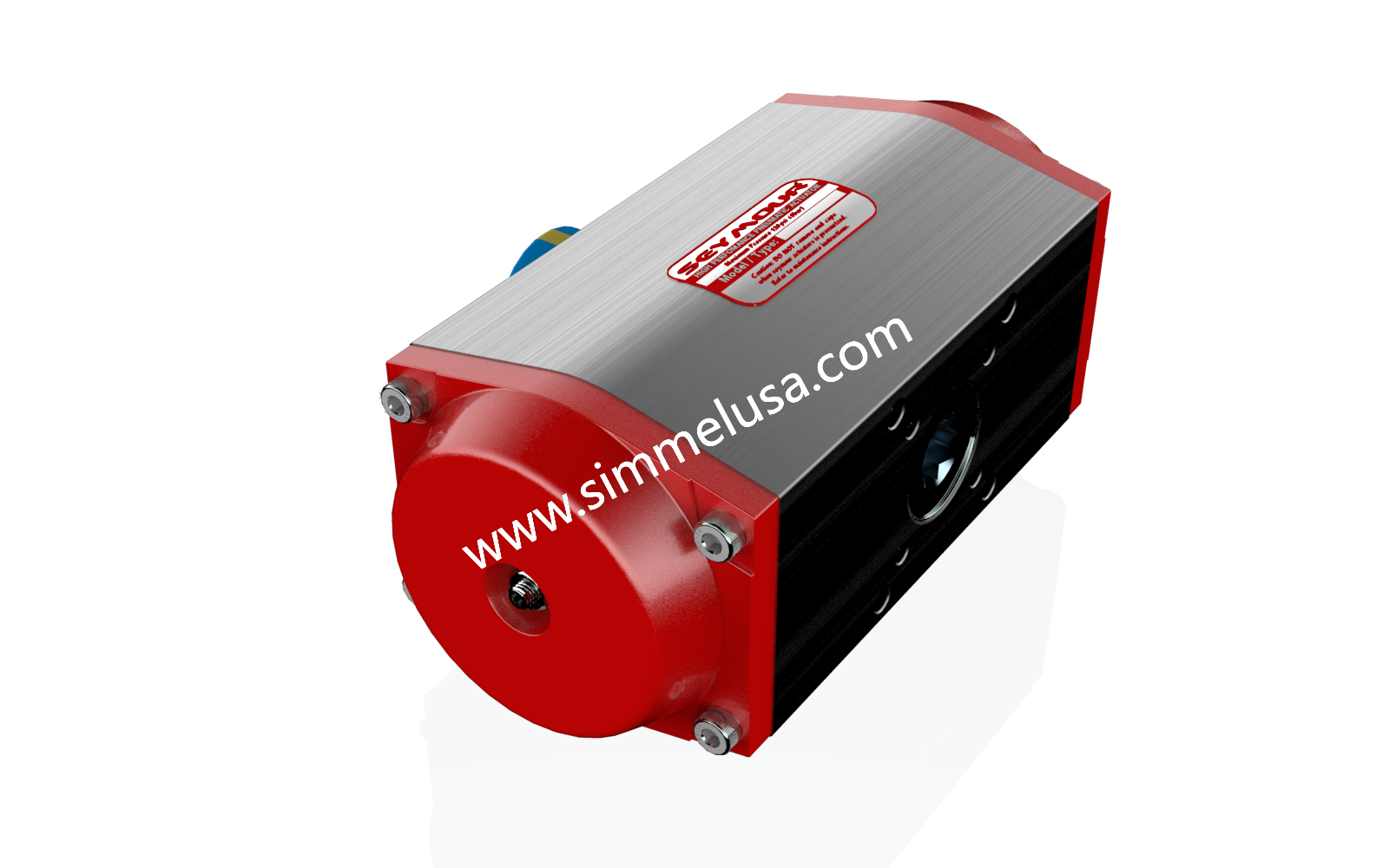

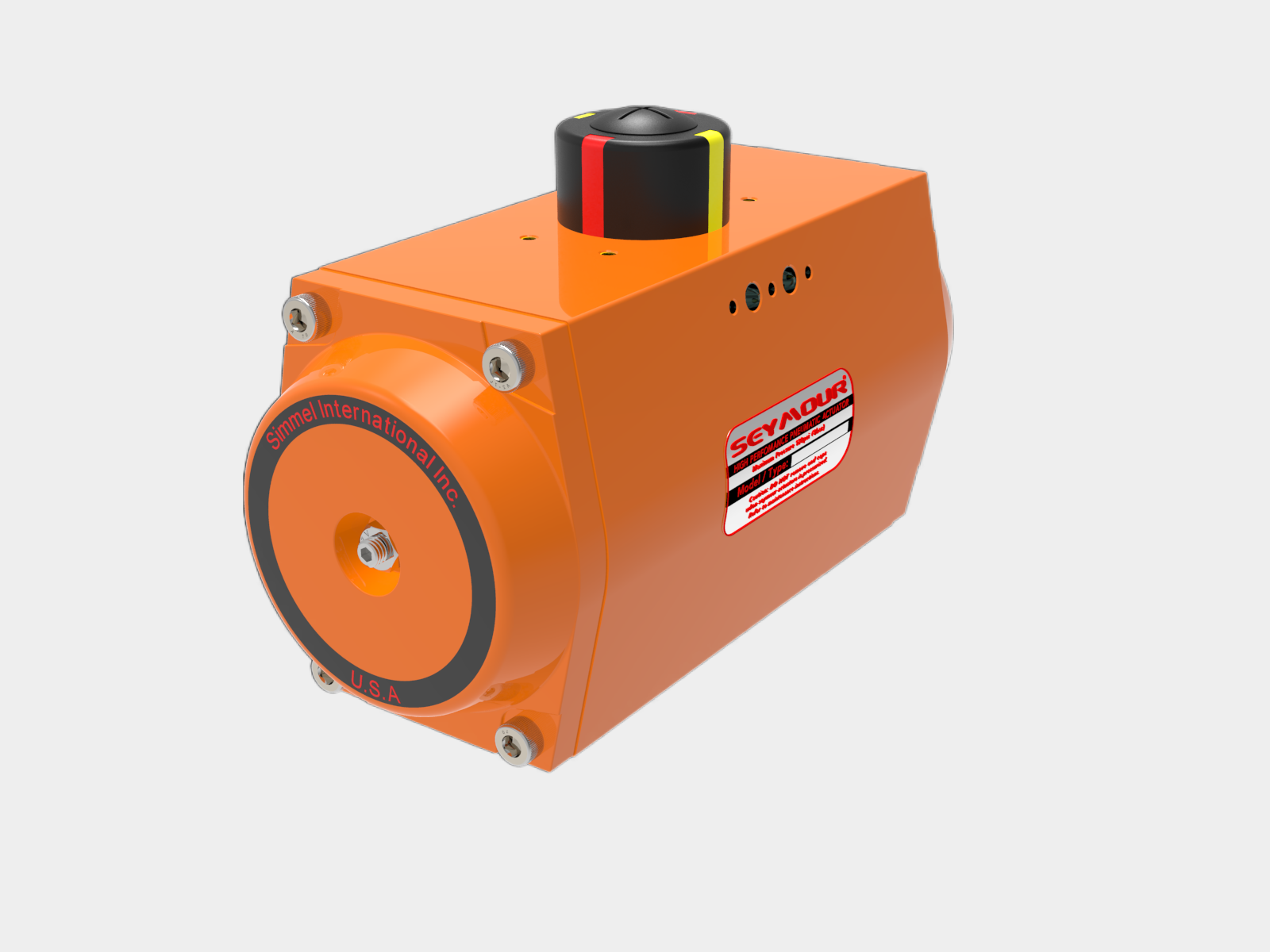

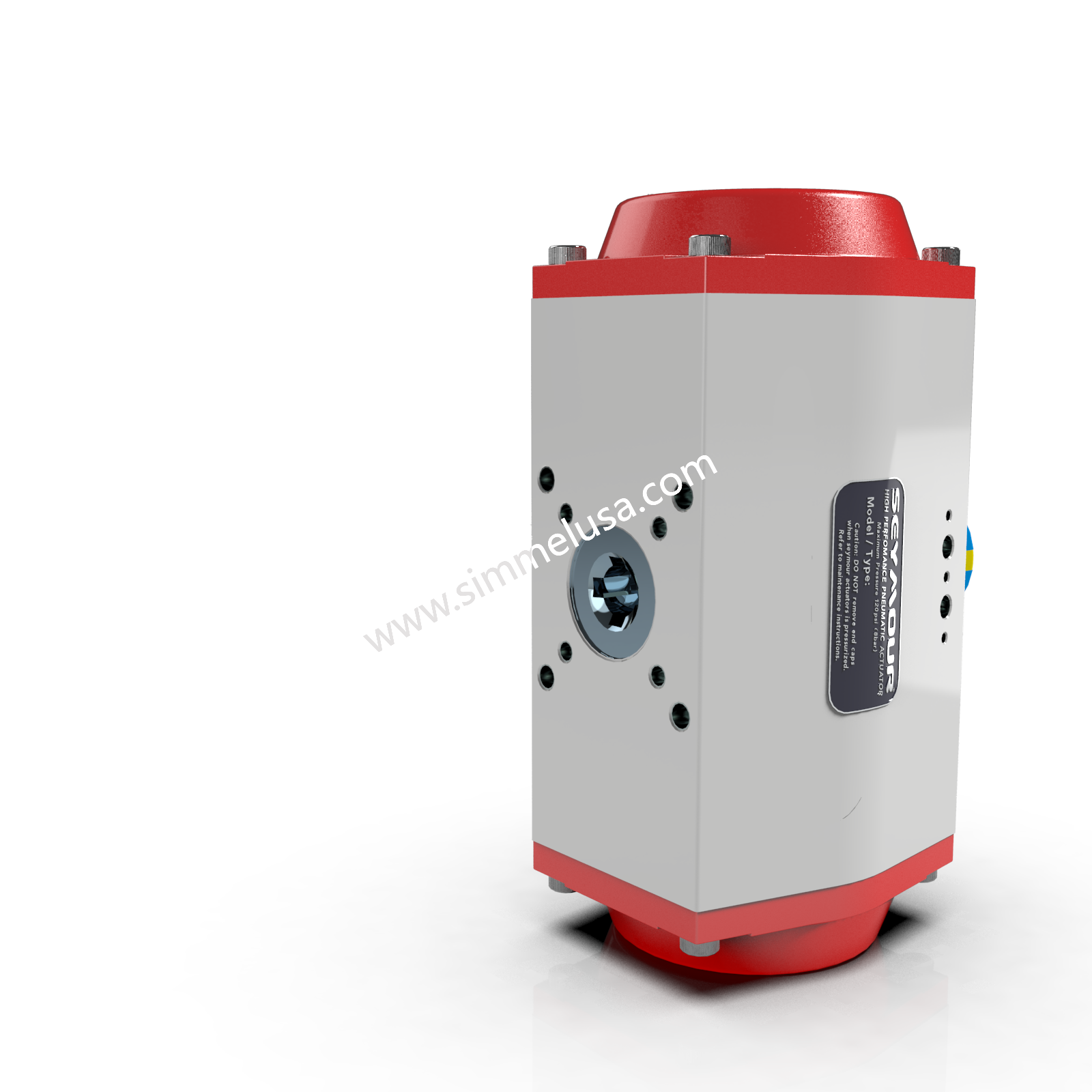

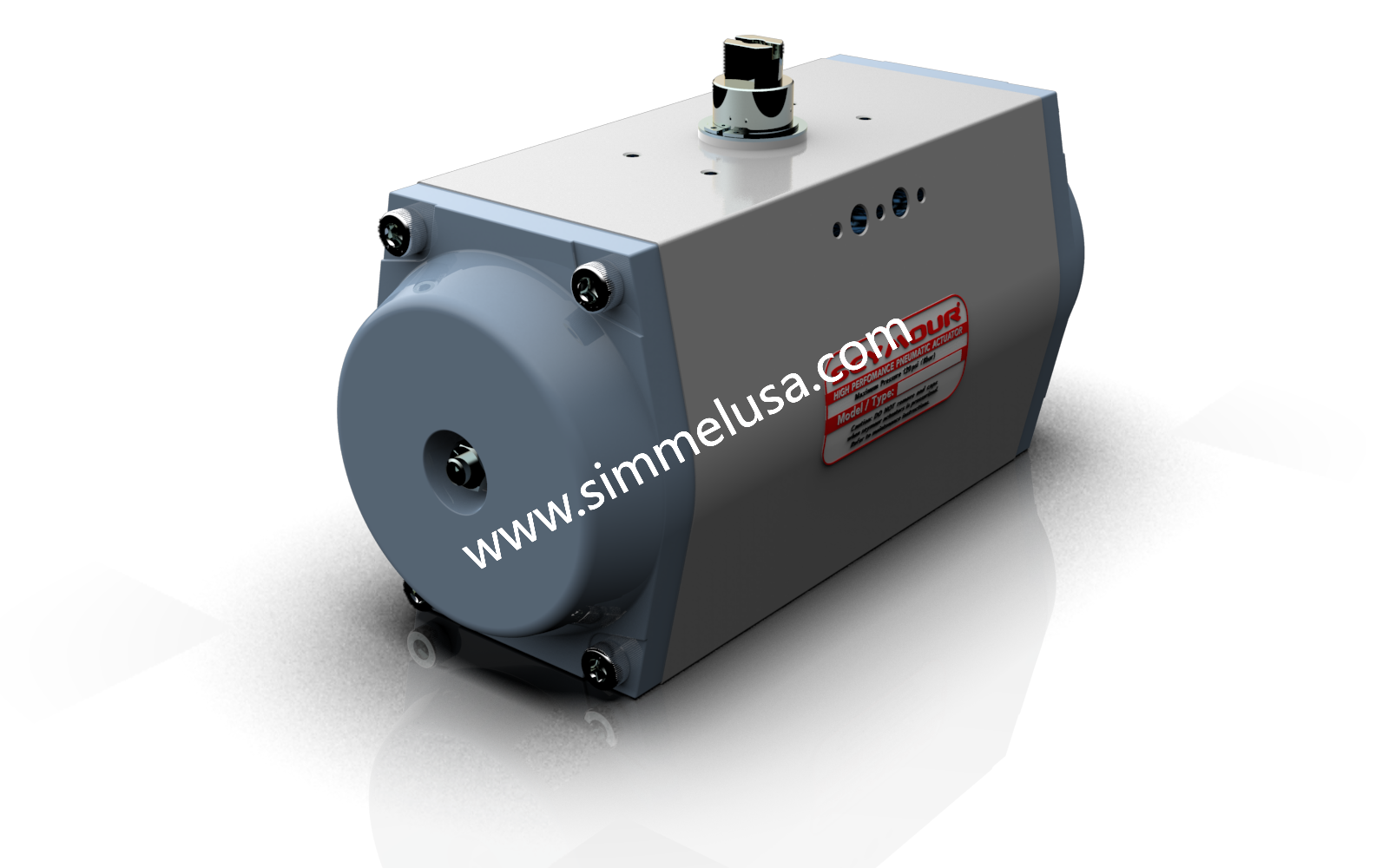

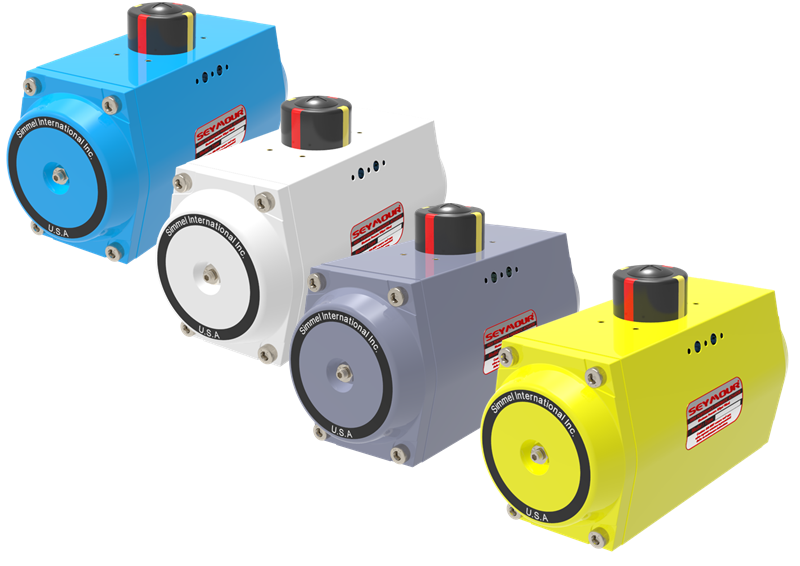

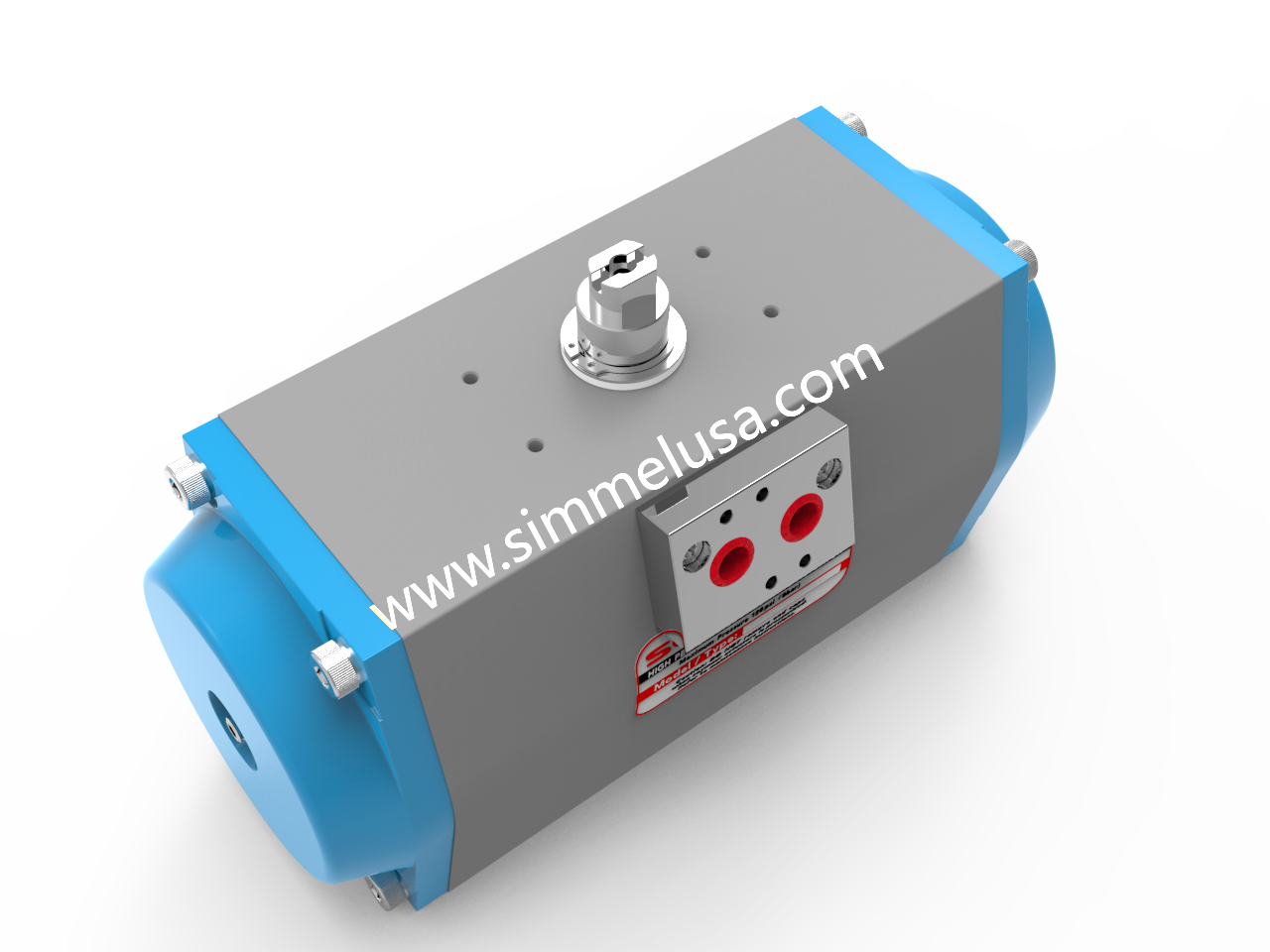

单限位系列气动执行器

单限位系列气动执行器

• 扭矩：

• Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)

• Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)

• 控制选项：


• On-Off, Throttling,

• Double Acting, Spring Return

• 环境温度：

• Standard (NBR O-ring): -4°F ~ 175°F

• Low Temperature (L NBR O-ring): -30°F ~ 175 °F

• High Temperature (Viton O-ring): 5°F ~ 300°F

• 气源压力：


• The minimum supply pressure is 30 psi.

• The maximum supply pressure is 145 psi.

• 工作条件：


• Dry and lubricated air, or non-corrosive gas.

• The maximun particle diameter must be less than 40μm.

• 行程调节：


• Have adjustment range of ± 5° at 0° and 90° position.

• 阀门应用：

• Butterfly Valves, Ball Valves, Plug valve, Damper
