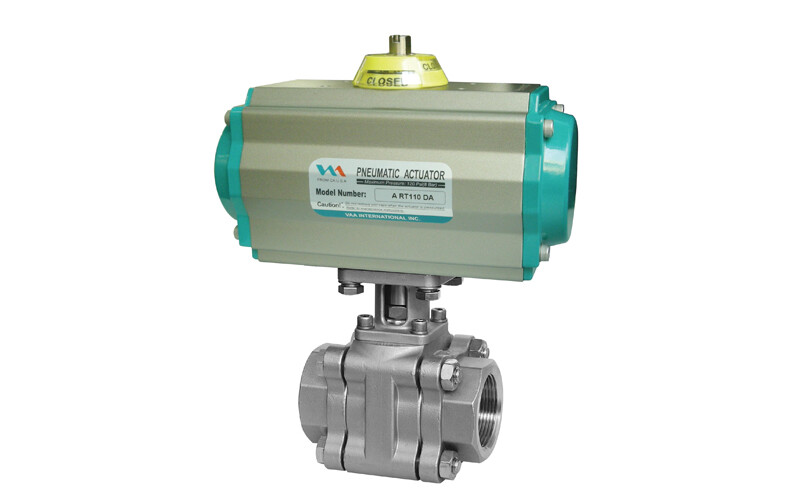

气动螺纹球阀
2000 / 3000
专业供应不锈钢三片式气动螺纹球阀，具备卓越密封性能与宽压力适用范围。适用于石油、天然气、水系统等工业流体控制场景，维护便捷可靠。

Simmel Valves

专业供应不锈钢三片式气动螺纹球阀，具备卓越密封性能与宽压力适用范围。适用于石油、天然气、水系统等工业流体控制场景，维护便捷可靠。

气动螺纹球阀

Stainless steel 3-piece ball valve for industrial fluid control. Reliable sealing, easy maintenance, and wide pressure ratings — ideal for oil, gas, and water.

Specifications

3-Piece Ball Valve Specifications

Size Range

NPS ¼ to 4 / DN 8 to 100

Body Materials

Stainless Steel, Carbon Steel, Special Alloys

Maximum Allowable Operating Pressure

2200 psi CWP (151 Bar)

Stem Materials

316 Stainless Steel

Temperature Range

-50°F to 550°F (-46°C to 287°C)

Seat Materials

Standard: TFM 1600, Optional: PEEK, RPTFE

Face To Face

ASME B16.10, Manufacturer Standard

Ball Materials

CF8M Stainless Steel

Shutoff Rating

Zero Leakage

Design Standard

ASME B16.34 Class 600

Body Style

Three Piece

Testing Standard

API 598, MSS SP72

End Connections

Threaded ASME B1.20.1 NPT, Socket Weld ASME B16.11, Extended Socket Weld, Butt Weld ASME B16.25, Extended Butt Weld, Flanged Class 600, ASME B16.10, ASME B16.5

Ports

Full Port NPS ¼ to 4 / DN 8 to 100
Standard Port NPS ¾ to 2½" / DN 20 to 65

Certifications

API 607 4th Edition, ATEX, CRN, NACE MR0175, PED, PE(S)R, TR CU, SIL

Applications

Process, Steam, Fire Safe, Industrial Gases
