限位开关
‹
›
- AISI aluminum die-casting shell, compact structure, light weight, sturdy and durable.
- High corrosion resistance due to double chromate treatment and polyester powder coating.
- With spring loaded cams, limit positions can be easily set without tools.
- Double sealed indicator that prevents water ingress in case of a dome failure.
- Compact limit switch box for direct mounting, Aluminium alloy
- AISI aluminum die-casting shell, compact structure, light weight, sturdy and durable.
- High corrosion resistance due to double chromate treatment and polyester powder coating.
- With spring loaded cams, limit positions can be easily set without tools.
- Double sealed indicator that prevents water ingress in case of a dome failure.
Switch Box Specifications
Certifications
CE, cULus (most models), SIL 3 capable
Optional: ATEX, IECEx S mark EAC
ABS type approval RMRS type approval RINA type approval
Temperature Range
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 248°F (-25°C to 120°C)
Enclosure Ratings
IP66 IP67 IP68
NEMA 4/4X, UL50E Salt Spray
Body Materials
Aluminium alloy
Visual Display
High Visibility Indicator
Beacon Color Options: Red/Yellow (Standard), Red/Green, Black/Yellow, Red/Green Inverse
Stem Materials
316 Stainless Steel
Switch Options
Mechanical: SPDT, SPDT (Low Power)
Proximity: PNP, NPN, 140V 2-Wire, 250V 2-Wire, Reed, NAMUR Intrinsically Safe
Bracket Materials
304 Stainless Steel
316 Stainless Steel
Mounting
VDI/VDE 3845 Compliant (NAMUR)
Switch Quantities
2 3 4 Mechanical switches or Proximity sensors
Conduit Ports
2x ½” NPT or 2x M20, 2x ½” PF
Travel angle
0-90° 45°，135°，140°，180°
Terminal points
8 points
Weight
1.0 kg
在线咨询
相关推荐

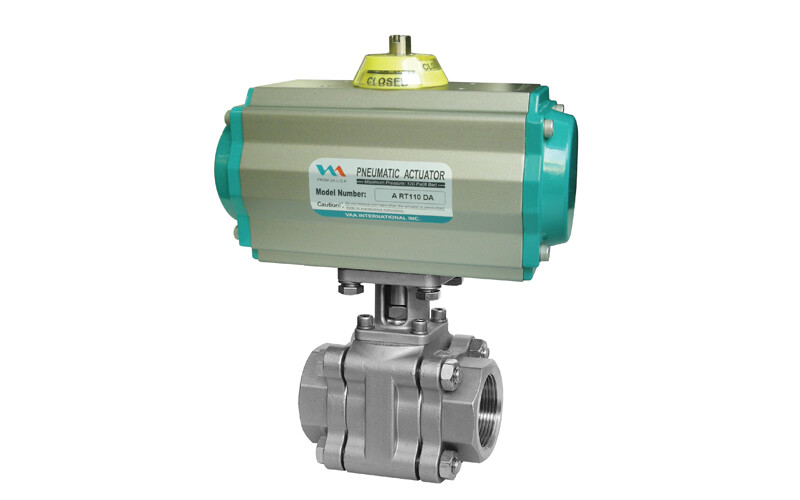

气动螺纹球阀专业供应不锈钢三片式气动螺纹球阀，具备卓越密封性能与宽压力适用范围。适用于石油、天然气、水系统等工业流体控制场景，维护便捷可靠。
限位开关APL-510N APL-510S Limit Switch Box
Explosion proof
• Aluminum die casting that is lightweight and robust.
• High corrosion resistance due to double chromate treatment and polyester powder coating.
• With spring loaded cams, limit positions can be easily set without tools.
• High visibility dome indicator with a double sealed structure prevents water ingress in case of a dome failure.
• Stainless steel 316 option
• Flag type indicator option- 限位开关High-quality Limit Switch Box for reliable machine control. Robust enclosure, easy mounting and cable access. Custom sizes available - enhance safety and uptime.
- 限位开关专业提供高品质阀门限位开关，精准控制阀门开闭状态，适用于各类工业自动化场景。优质材料，稳定耐用，满足您的工业控制需求。
